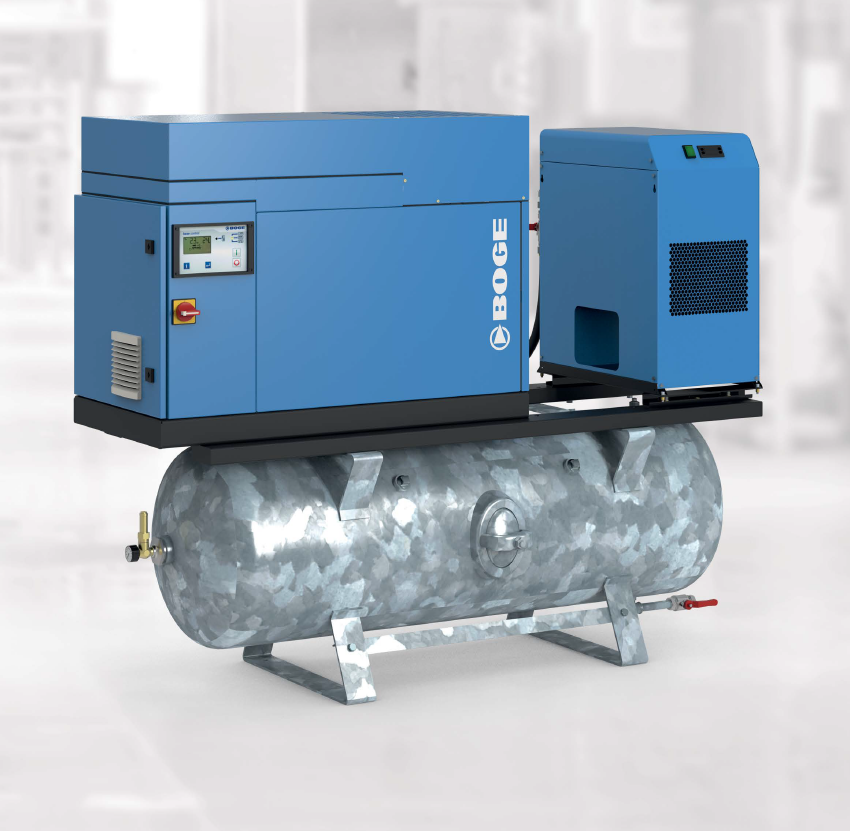

BOGE’s C series has always been our customers’ favourite – thanks to their modular construction, flexible expansion options and the smallest footprint in its class. BOGE has improved the C series in the performance range of 5.5 – 11 kW once more with a highly efficient permanent magnet motor which can combine improved performance levels with a pleasantly low noise level. The proverbial flexibility of the C series remains unchanged: whether dryer, receiver or high level controller – the choice remains yours!
The integrated frequency converter ensure continuous volume flow between 25 and 100 percent by automatically adapting to the momentary demand of the compressed air system - an advantage with big pay back due to distinctly reduced energy costs.
Permanent magnet motors (PM) are not just the key to achieving lower noise
emissions, they can achieve the best balance between free air delivery and
efficiency: all the screw compressors in the C series with PM technology are
able to produce considerably higher free air delivery using the same power
consumption. Whether frequency-controlled or with direct drive, high free air
delivery can be achieved in any continuous operation situation.
Practically any sector with a constant need for compressed air will benefit
from lower energy consumption from the new BOGE screw compressors with
permanent magnet motor. In the case of the C 9 PM – a frequency-controlled
model in the 7.5 kW class – the potential energy savings are over six per
cent. Especially with partial loads, all models in the C PM series show
considerably improved efficiency values.

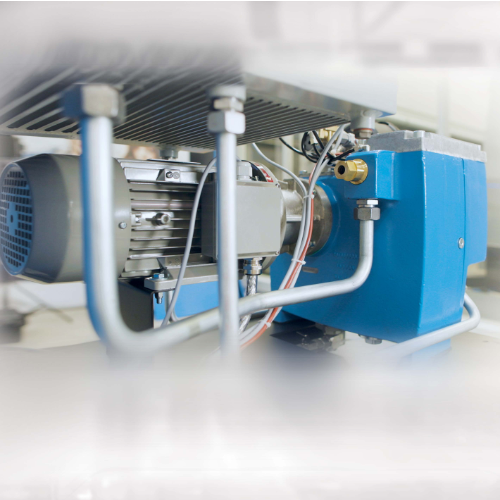

There’s a good reason why BOGE follows its own path: whereas many
competitors’ motors and airends are one single assembly, the new C series
makes a clear separation between the airend and permanent magnet
motor – a clear advantage when one or both of the components requires
maintenance or exchange. Combined with ease of access, the result is an
extremely maintenance-friendly design concept.
| BOGE Model |
Max. Pressure bar | psig |
Free Air Delivery cfm | m3/min |
Motor Power HP | kW |
Dimensions W x D x H mm |
Weight kg |
|---|---|---|---|---|---|
| C 7 PM | 7.5 | 109 | 10.59 to 33.17 | 0.30 to 0.94 | 7.5 | 5.5 | 1,060 x 631 x 854 | 217 |
| C 7 PMRi. | 10 | 145 | 10.59 to 28.94 | 0.30 to 0.82 | 7.5 | 5.5 | 1,840 x 804 x 1,404 | 357 |
| C 7 PMDRii. | 13 | 189 | 11.29 to 24.00 | 0.32 to 0.68 | 7.5 | 5.5 | 1,990 x 804 x 1,404 | 395 |
| C 9 PM | 7.5 | 109 | 10.59 to 47.99 | 0.30 to 1.36 | 10 | 7.5 | 1,060 x 631 x 854 | 220 |
| C 9 PMRi. | 10 | 145 | 10.59 to 43.40 | 0.30 to 10.59 | 10 | 7.5 | 1,840 x 804 x 1,404 | 360 |
| C 9 PMDRii. | 13 | 189 | 11.29 to 35.99 | 0.32 to 1.02 | 10 | 7.5 | 1,909 x 804 x 1,404 | 409 |
| C 14 PM | 7.5 | 109 | 10.59 to 61.40 | 0.30 to 1.74 | 15 | 11 | 1,060 x 631 x 854 | 220 |
| C 14 PMRi. | 10 | 145 | 10.59 to 52.93 | 0.30 to 1.50 | 15 | 11 | 1,840 x 804 x 1,404 | 360 |
| C 14 PMDRii. | 13 | 189 | 11.29 to 45.17 | 0.32 to 1.28 | 15 | 11 | 1,990x 804 x 1,404 | 409 |
